What Are the Requirements for Solder Paste in DSP Packaging?

Publish Time: 2026-07-07

Share:

What Are the Requirements for Solder Paste in DSP Packaging?


In DSP (digital signal processor) packaging, solder paste must meet three core requirements: ultra-fine-pitch printing, high-reliability soldering, and environmentally friendly cleaning. The specific technical parameters and performance standards are as follows:

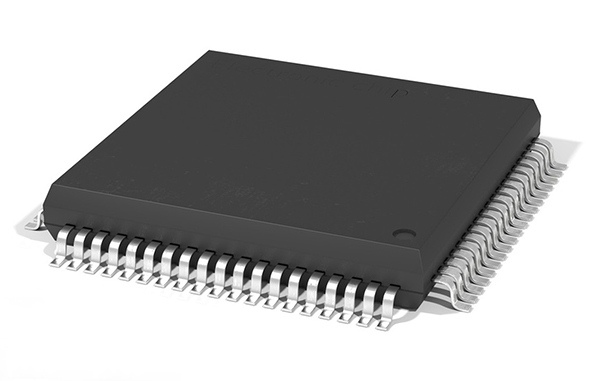

What Are the Requirements for Solder Paste in DSP Packaging?cid=64

I. Ultra-Fine-Pitch Printing Capability

Particle Size Control

The particle size of the metal powder in the solder paste must reach 2-11 micrometers (such as the FWS3057 model) to accommodate pad pitches at the 40 micrometer level. Conventional solder pastes are prone to peaking, slumping, or bridging at a 40 micrometer pitch, whereas ultra-fine powder solder paste can achieve 100% stencil release with no residue, ensuring sharp printed pattern edges and preventing risks of bridging and insufficient solder joints.

Case: In silicon photonics chip packaging, each bare die wafer contains 1,800-2,000 solder joints. The solder ball diameter is only 75-80 micrometers, and the ball pitch is compressed to 40 micrometers. FWS3057 solder paste, together with a specially optimized stencil aperture process (60-80 micrometers), achieves full paste deposition and stable formation, improving printing consistency by 40%.

Thixotropy and Shape Retention

The solder paste needs a thixotropic agent system to resist cold/hot slump during printing. For example, after FWS3057 is left at room temperature for 12-24 hours, it can still maintain its original shape and size, avoiding short-circuit or open-circuit problems caused by solder-joint collapse.

II. High-Reliability Soldering Performance

Wettability and Spreading Capability

The active ingredients must be precisely compounded to achieve instantaneous spreading on copper, silver, gold, and other plated finishes. During reflow soldering, FWS3057 solder paste forms bright, full solder joints and increases tensile strength by 30%, meeting the stringent reliability requirements of automotive electronics, aerospace, defense, and related fields.

Test data: With a vacuum-reflow-compatible design, the solder-joint void rate remains consistently below the industry average, significantly reducing the risk of soldering failure caused by voids.

Adaptability to a Wide Process Window

It supports +/-10 degrees C peak-temperature fluctuation in nitrogen or air atmospheres, matching diverse needs from laboratory trials to mass production. For example, in Mini LED micron-level solder-joint packaging, the solder paste must maintain stable soldering performance across the temperature variation range to prevent yield loss caused by process-parameter deviations.

III. Environmental Protection and Cleaning Compatibility

Fully Water-Soluble Cleaning Solution

Conventional rosin-based solder paste requires chemical solvents for cleaning, which creates PCB corrosion risks and high wastewater-treatment costs. FWS3057 uses a fully water-soluble flux. After soldering, residues can be efficiently removed with only 55 degrees C deionized water and 60 psi spray pressure, improving cleaning efficiency by more than 50% compared with conventional processes while reducing corporate wastewater-treatment costs by 70%.

Environmental standards: It meets international certifications such as EU RoHS and automotive-electronics IATF 16949, avoiding compliance risks caused by excessive hazardous substances.

Low Residue and High Insulation Resistance

Post-soldering residues must have high insulation resistance and be non-corrosive, ensuring that DSP chips do not suffer electrical-performance degradation during long-term use. For example, in high-frequency communication module packaging, residues may cause signal interference or insulation failure, while water-soluble solder paste can completely avoid such problems.

IV. Typical Application Scenarios and Advantages (DSP717HF in Yang Fang's table replaced with FWS3057)


Application Scenario

Technical Requirement

FWS3057 Solution

Wafer Bumping

40 micrometer micro-bump ball placement

5-15 micrometer ultra-fine powder size; high printing consistency; extremely low residue

CSP/WLP Packaging

Wafer-level high-density interconnection

Vacuum-grade low-void design; tensile strength improved by 30%

Optical Module Packaging

Reliability of narrow-pitch solder joints

Wide process-window compatibility; optimized wettability

Mini LED Display

Shape retention for micron-level solder-joint patterns

Thixotropic system resists cold/hot slump; sharp pattern edges

Conclusion

The core requirements of DSP packaging for solder paste can be summarized as follows: ultra-fine particle size to suit micro-pitch features, high activity to ensure wettability, water-soluble cleaning to meet environmental requirements, and a wide process window to improve yield. Represented by FWS3057, the new generation of solder paste has successfully solved 40 micrometer-level packaging challenges through innovations in materials science and process design, becoming a key material solution for high-end electronic manufacturing.
