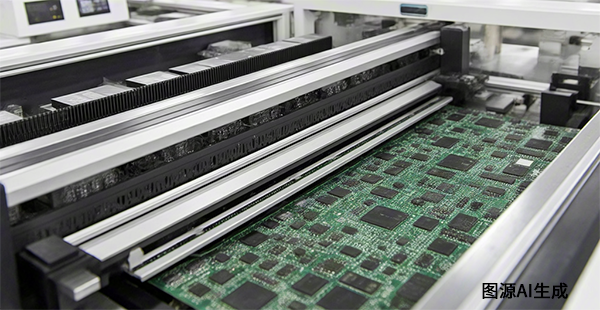

The Difference Between SPI and AOI in SMT

In surface mount technology (SMT) production processes, solder paste inspection (SPI) and automatic optical inspection (AOI) serve as two core quality control technologies. Through their distinct functions and collaborative efforts, they jointly establish an efficient quality assurance system.

Detection, Positioning, and Functional Features

SPI focuses on post-solder paste printing quality inspection, with its core function being the precise control of solder paste printing quality. Through laser scanning or optical imaging technology, SPI can accurately measure critical parameters such as solder paste thickness, area, volume, and offset, effectively identifying printing defects like under-pasting, over-pasting, misalignment, and short circuits. This early detection prior to component placement prevents defective products from entering subsequent processes, thereby reducing quality risks at the source.

AOI primarily handles quality inspection after component placement and soldering. Utilizing high-resolution cameras and advanced image processing algorithms, AOI comprehensively detects issues such as missing components, misalignment, polarity errors, and solder joint defects. By inspecting placement accuracy before reflow and verifying soldering quality after reflow, AOI enables quality monitoring throughout the entire production process.

Process Position and Inspection Timing

SPI is positioned as a critical process node following solder paste printing and preceding component placement. This placement enables timely interception of printing defects, preventing defective products from advancing to subsequent higher-value production stages, thereby significantly reducing rework costs and resource waste.

AOI, tailored to different inspection objectives, is deployed both after component placement (pre-reflow AOI) and after reflow soldering (post-reflow AOI). Pre-reflow AOI primarily verifies placement accuracy, while post-reflow AOI comprehensively evaluates solder quality and finished product reliability. This phased inspection strategy ensures quality control throughout the entire production process.

Technical Specifications and Precision Performance

In terms of detection accuracy, SPI typically achieves micrometer-level measurement precision, particularly in thickness measurement where it can reach ±1μm accuracy. This high precision makes it highly sensitive to minute changes in solder paste morphology.

AOI detection capabilities primarily depend on camera resolution and algorithm performance, typically identifying defects as small as 0.1mm. With the application of 3D measurement technology and artificial intelligence, the detection capabilities of modern AOI systems are continuously improving, significantly reducing false alarm rates.

Technical Implementation Methods

SPI primarily employs two technical approaches: laser projection and optical imaging. The laser projection method utilizes high-precision laser scanning to capture surface morphology data of solder paste, while the optical imaging method employs digital cameras to capture solder paste topographical features. Both methods generate detailed solder paste thickness distribution maps and defect analysis reports.

AOI employs image comparison and multi-spectral illumination technology. It intelligently compares captured PCB images against standard templates, utilizing multi-wavelength light sources to enhance defect recognition capabilities. This process ultimately outputs comprehensive defect markings and inspection reports.

Collaborative Optimization of Production Efficiency

As a pre-production inspection stage, SPI prevents resource wastage in subsequent processes by detecting defects early. While brief parameter adjustments may temporarily affect production rhythm, overall efficiency is significantly enhanced.

As a post-process inspection, AOI rapidly completes multi-point verification with minimal impact on production flow. However, when placement issues are detected, timely rework is required, potentially affecting production continuity.

Technological Trends and Industry Value

Currently, SPI and AOI technologies are rapidly advancing toward three-dimensional measurement, artificial intelligence deep learning, and data interconnectivity. 3D SPI enables more precise measurement of solder paste height and volume, while 3D AOI detects complex defects such as component warping and solder joint contours. The application of artificial intelligence significantly reduces false alarm rates and enhances inspection reliability.

In high-reliability sectors like smartphones and automotive electronics, the synergistic application of SPI and AOI demonstrates significant value. The quality closed-loop control formed by both technologies not only substantially reduces product failure rates but also provides valuable data support for continuous process improvement. By correlating SPI's printing quality data with AOI's soldering defect data, root causes can be rapidly identified, enabling precise process optimization.

Summary

SPI serves as the first line of defense in quality assurance, acting as a "preventive specialist" focused on controlling solder paste printing quality. AOI, as the final guardian of quality, fulfills the role of an "inspection specialist," ensuring the reliability of finished product quality. Complementing each other, they jointly establish a comprehensive quality assurance system for production.

As electronic components continue to evolve toward miniaturization and higher density, SPI and AOI technologies will undergo continuous evolution and innovation. Their synergistic application not only enhances product quality and production efficiency but also provides a robust technological foundation for smart manufacturing and digital transformation, serving as indispensable key technological support for the high-quality development of modern electronics manufacturing.
