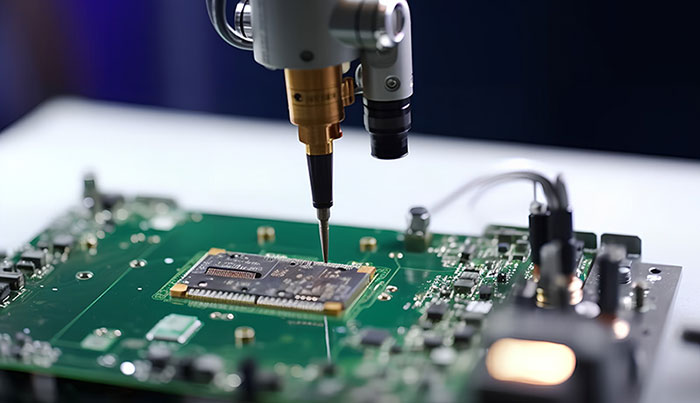

Principles and Advantages of Laser Solder Paste Soldering

Laser solder paste soldering is an advanced soldering technology that uses a laser beam as a heat source to melt the solder paste and solidify the joint through precise control of energy input. Its principles and advantages are as follows:

I. Principles of Laser Solder Paste Welding

Energy Focusing and Heat Transfer Mechanisms

Laser light generated by a laser (such as a semiconductor laser or fiber laser) is focused by an optical system into a micrometer-sized spot, which is directly directed onto the surface of the solder paste in the area to be soldered. The laser energy is absorbed by the metal particles (such as Sn-Ag-Cu alloy) and flux in the solder paste, converted into thermal energy, and rapidly heats the solder paste to its melting point (typically above 217°C).

Solder Paste Melting and Wetting Process

Flux Activation: When the laser energy reaches the activation threshold of the solder paste, the flux first decomposes under heat, removing oxide layers from the pads, component leads, and the surface of the solder powder, thereby reducing interfacial tension.

Formation of Liquid Solder: The metal particles in the solder paste melt at high temperatures, forming liquid solder. Under the influence of surface tension, the liquid solder wets the pads and leads, filling gaps and forming a metallurgical bond.

Cooling and Solidification: After the laser stops irradiating, the solder rapidly cools and solidifies, forming a solder joint with high mechanical strength and good electrical conductivity.

Precise Energy Control

By adjusting the laser power, exposure time, and spot diameter, precise control over the heat in the soldering area is achieved. This non-contact heating method eliminates the heat conduction delay associated with traditional soldering irons or reflow soldering, enabling soldering to be completed in milliseconds and significantly improving production efficiency.

II. Advantages of Laser Solder Paste Welding

High-Precision Welding

Micron-level precision: The laser spot can be focused to less than 50 μm, enabling precise soldering of tiny components (such as 01005 resistors and CSP chips) and high-density pins (such as QFPs with a pitch of ≤0.4 mm), thereby avoiding defects such as bridging and misalignment caused by mechanical contact or heat diffusion in traditional soldering.

Applications: Ideal for microelectronic assembly with extremely tight space constraints, such as mobile phone motherboards and wearable devices.

Low Heat-Affected Zone (HAZ)

Localized Heating: Laser energy is concentrated at the solder joint, resulting in a minimal heat-affected zone. This significantly reduces thermal damage to heat-sensitive components (such as LEDs and sensors) and plastic substrates.

Rework Advantages: Particularly suitable for rework processes, allowing precise repair of individual solder joints without removing surrounding components.

Fast and Efficient

Millisecond-Level Welding: Both the heating and cooling processes in laser welding are completed within milliseconds; the welding time for a single point is typically less than 1 second, far faster than traditional soldering iron methods (which take several seconds to tens of seconds).

Mass Production: When integrated with automated platforms (such as XYZ motion systems or robots), it enables high-speed batch welding, enhancing production line efficiency.

Flexibility and Adaptability

Multi-scenario Applications: Suitable for welding on flat, curved, and even three-dimensional structures, such as connectors and the connection of wires to substrates.

Material Compatibility: Supports various types of solder paste (e.g., lead-free, low-temperature solder paste) and can meet the welding requirements of special materials (e.g., ceramics, glass) by adjusting parameters.

Environmental Sustainability and Safety

Dry Process: Eliminates the need for large amounts of flux or cleaning agents, reducing chemical pollution and waste disposal costs.

Low Energy Consumption: Compared to wave soldering or reflow soldering, laser welding consumes less energy, aligning with green manufacturing trends.

Intelligent Integration

Vision-Based Positioning and AI Algorithms: Laser welding systems integrate easily with vision-based positioning (e.g., CCD cameras) and AI algorithms to enable automatic planning of welding paths and real-time quality monitoring.

Closed-Loop Control: Through closed-loop control mechanisms such as power feedback and temperature monitoring, welding parameters are dynamically adjusted to ensure consistent solder joints and high yield rates.
