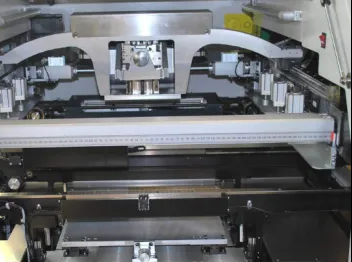

How to Choose a Solder Paste Squeegee?

Selecting a solder paste squeegee requires comprehensive consideration of material, shape, size, hardness, and process requirements to ensure print quality, efficiency, and equipment life. The following are specific selection points, recommendations, and example recommended configurations:

Material Selection

Metal Squeegee

Stainless steel: Highly wear-resistant, suitable for high-precision, high-volume production, but at a higher cost.

Aluminum alloy: Lightweight and corrosion-resistant, meets medium-precision needs, but with lower hardness and prone to wear.

Steel squeegee: High hardness and strong durability, but requires regular maintenance to prevent rust.

Application scenarios: High-precision electronics manufacturing (e.g., SMT placement), long-term continuous production.

Plastic squeegee (e.g., polyurethane)

Advantages: Low cost, easy replacement, and minimal wear on the stencil.

Disadvantages: Prone to wear and requires frequent replacement; suitable for low-precision or temporary use.

Application scenarios: Prototyping, small-batch production, or scenarios with high stencil-protection requirements.

Shape Design

Blade Edge Shape

Square edge: Suitable for high-precision printing, but pressure must be controlled to avoid scratching the stencil.

Rounded edge: Reduces stencil wear; suitable for coarse-particle solder paste or thick-film printing.

Angled (beveled) edge: Balances precision and wear resistance; suitable for most general-purpose scenarios.

Special shapes: Such as a wavy edge, which can improve solder paste fluidity but requires matching a specific process.

Squeegee angle: 45°-60° (angle with the stencil surface) is recommended; too small an angle tends to leave solder paste residue, while too large an angle increases printing resistance.

Size Matching

Length: Should be slightly larger than the stencil width, typically 10-20 mm longer, to ensure full coverage of the printing area. For example, for a 200 mm stencil, a squeegee length of 220-240 mm is appropriate.

Thickness

Thin squeegee (0.5-1.0 mm): Suitable for fine-pitch components (e.g., 0402, 0201 packages), reducing solder paste overflow.

Thick squeegee (1.0-2.0 mm): Suitable for large components or thick-film printing, increasing fill volume.

Width: Must match the printer's rails, typically 80%-90% of the stencil width, to balance pressure distribution.

Hardness and Elasticity

Hardness Selection

High hardness (60-70 Shore D): Suitable for fine-pitch printing, but pressure must be controlled to prevent stencil deformation.

Medium hardness (50-60 Shore D): Balances wear resistance and stencil protection; suitable for general-purpose scenarios.

Low hardness (40-50 Shore D): Suitable for coarse-particle solder paste or thick-film printing, reducing squeegee wear.

Elastic modulus: Metal squeegees have a high elastic modulus, suitable for high-precision printing; plastic squeegees have a low elastic modulus and require regular inspection for deformation.

Process Compatibility

Solder Paste Type

Fine-particle solder paste: Requires a high-precision squeegee (e.g., metal square edge) to avoid bridging.

Coarse-particle solder paste: A plastic rounded-edge squeegee can be used to reduce stencil wear.

Printing Speed

High-speed printing: Requires a high-hardness, wear-resistant squeegee (e.g., stainless steel) to reduce replacement frequency.

Low-speed printing: A plastic squeegee can be selected to reduce cost.

Stencil Type

Laser-cut stencil: Requires a high-precision squeegee to match the micro-aperture structure.

Electroformed stencil: Requires a soft squeegee (e.g., polyurethane) to avoid damaging the aperture walls.

Maintenance and Cost

Maintenance Frequency

Metal squeegee: Requires regular cleaning (e.g., ultrasonic cleaning) to remove solder paste residue.

Plastic squeegee: Requires inspection of edge wear and timely replacement to avoid printing defects.

Cost Effectiveness

Long-term production: A metal squeegee (e.g., stainless steel) is recommended-higher initial cost but long life and low maintenance cost.

Short-term or small-batch production: A plastic squeegee can be selected to reduce initial investment.

Recommended Configuration Examples

Summary

Solder paste squeegee selection should center on process requirements, giving priority to matching the solder paste type, stencil characteristics, and printing speed, then making a comprehensive decision based on cost and maintenance needs. It is recommended to verify squeegee performance through trial printing and adjust parameters (such as pressure, speed, and angle) based on actual production feedback to achieve the best printing results.
