How can SPI data be used to adjust solder paste printing parameters in real time?

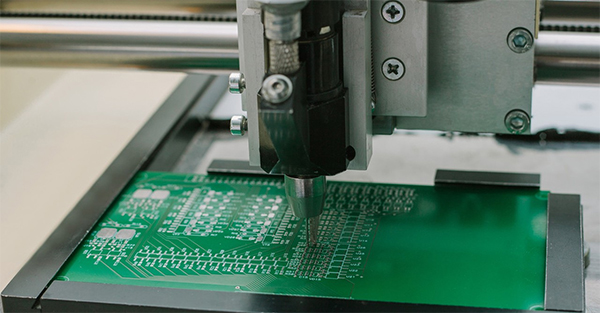

Real-time adjustments to solder paste printing parameters based on SPI (Solder Paste Inspection) data can be achieved by establishing a closed-loop "inspection-analysis-adjustment" system. The core of this approach lies in using SPI’s 3D measurement data as a reference and combining it with process optimization algorithms to dynamically correct the printer’s parameters. The specific implementation steps are as follows:

I. Data Acquisition: SPI’s Three-Dimensional Precision Measurement

SPI uses a high-resolution camera and structured light to perform a three-dimensional scan of the solder paste on the PCB, generating point cloud data that includes parameters such as thickness, volume, area, and offset. For example:

Thickness Data: Reflects the height of the solder paste deposit and is used to determine whether it falls within the standard range of stencil thickness +0.03 mm to -0.025 mm (e.g., when the stencil thickness is 0.12 mm, the solder paste thickness should be 0.095 mm to 0.15 mm).

Volume data: Correlates with solder joint strength; if the volume deviates by 50% from the standard value, it may cause cold solder joints or bridging.

Offset data: Detects the relative position of the solder paste to the pad; if the offset exceeds 30% of the pad size (e.g., for 01005 components), re-alignment is required.

II. Data Analysis: Establishing Quality Benchmarks and Deviation Models

Setting Standard Values

Based on the IPC-7527 standard and product characteristics, set the upper and lower limits (LSL/USL) and the central limit (CL) for solder paste parameters. For example:

When the stencil thickness is 0.07 mm, the lower limit (LSL) under standard process conditions is 35 μm, the upper limit (USL) is 125 μm, and the central limit (CL) is 80 μm.

For 0201 components, the maximum solder paste volume is 0.025 mm³, and the deviation must be less than 30% of the pad’s width and length.

Deviation Calculation

The SPI compares measured data with standard values to generate a deviation report. For example:

If the solder paste thickness in a certain area is detected as 130 μm (exceeding the USL), the system marks it as “excessive thickness”;

If the deviation is 35% of the pad width (exceeding specifications), the system marks it as “excessive deviation.”

CPK Value Monitoring

Process stability is quantified by calculating the Process Capability Index (CPK). For example:

CPK ≥ 1.33 indicates a stable process with high yield;

When CPK < 1.0, parameters must be adjusted or the stencil design optimized.

III. Real-time Feedback: Dynamic Adjustment of Printing Parameters

SPI data drives adjustments to the printer’s parameters in the following ways:

Direct parameter correction

Printing pressure: If the SPI detects uneven solder paste thickness (e.g., excessive thickness in certain areas), the system automatically increases the pressure to compensate, ensuring uniform filling of the stencil apertures.

Squeegee Speed: If volume data is low, the system reduces the squeegee speed (e.g., from 80 mm/s to 60 mm/s) to extend the solder paste filling time.

Release Speed: If stringing is detected (release speed > 3 mm/s), the system automatically reduces the release speed to 0.3 mm/s to minimize solder paste residue.

Stencil Optimization Recommendations

If the SPI continuously detects bridging defects, the system recommends switching to a stepped stencil or a reduced solder design to balance solder volume.

If the offset exceeds the limit (e.g., 01005 component offset > 30% of the pad), the system prompts a check of the stencil tension (standard 35–42 N/cm) or the PCB mounting fixture.

Closed-Loop Control Example:

Scenario: The SPI detects that the solder paste volume in a specific IC area is too small (actual value 90 μm³, standard value 100–120 μm³).

Action: The system automatically triggers the printer to make the following adjustments:

Increase printing pressure (from 0.4 kg/cm² to 0.5 kg/cm²);

Reduce squeegee speed (from 70 mm/s to 50 mm/s);

Initiate stencil bottom wiping (once every 5 boards).

Result: After re-inspection, solder paste volume recovered to 0.020 mm³, and CPK improved from 0.8 to 1.4.

IV. Collaborative Optimization: Integration with Placement Machines and Reflow Ovens

Coordination with Placement Machines

The SPI synchronizes offset data with the pick-and-place machine to automatically correct placement coordinates. For example:

If the SPI detects a solder paste offset of 0.02 mm from the pad, the pick-and-place machine will shift the component placement coordinates by +0.02 mm to improve alignment accuracy.

Coordination with the Reflow Oven

SPI volume data is used to optimize reflow oven zone parameters. For example:

If the solder paste volume for 0201 components is too small (<0.01 mm³), the system recommends lowering the peak reflow temperature (from 245°C to 240°C) to prevent cold solder joints.

V. Implementation Results and Case Studies

Efficiency Improvement: A consumer electronics production line used SPI closed-loop control to increase first-pass yield from 85% to 98% and reduce downtime by 40%.

Cost Reduction: An automotive electronics manufacturer optimized stencil design using SPI data to reduce solder paste waste, lowering the cost per board by 0.02 yuan.

Yield Stability: After introducing SPI, a high-end server production line maintained a first-pass yield rate of over 99.95%, with customer complaint rates dropping by 60%.

Summary:

Utilizing SPI data for real-time feedback and adjustments represents a core smart manufacturing practice that shifts from “passive inspection” to “active control.” Through a closed-loop process of data quantification → intelligent analysis → precise execution, it dynamically maintains the printing process in an optimal state, ultimately achieving the overarching goals of improved SMT first-pass yield, reduced costs, and enhanced product reliability. Successful implementation relies on precision hardware, intelligent software algorithms, and deep system integration with production equipment.
