SAC305 Series Solder Paste

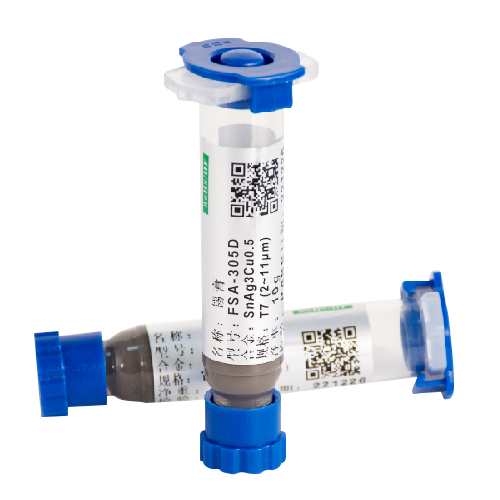

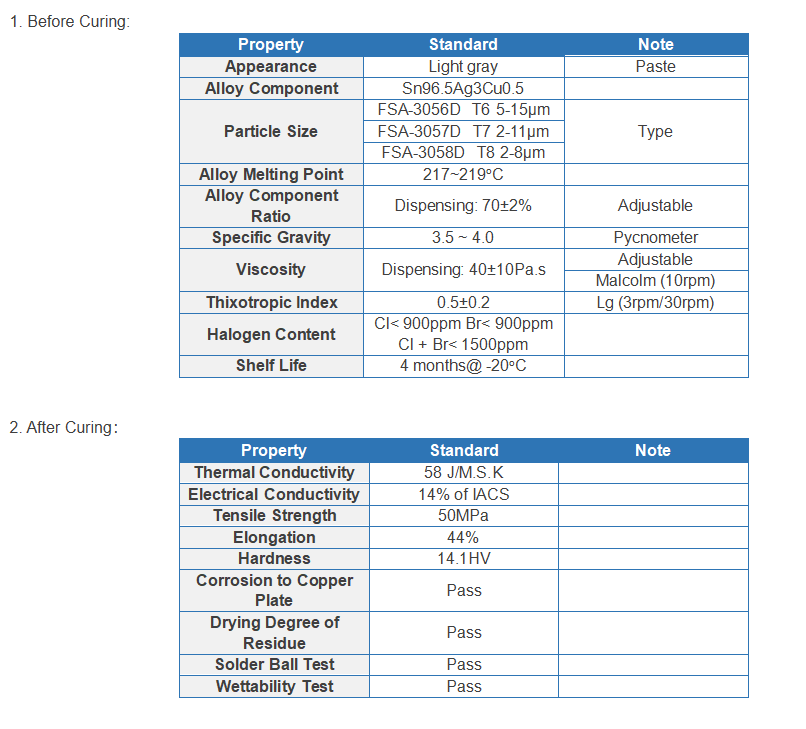

FSA-305D series medium-temperature fine-pitch ultra-fine solder paste (SnAgCu epoxy solder paste) is composed of SAC305 solder powder and halogen-free flux. Only a tiny amount of solvent evaporates during the soldering and curing process. There is no solder ball formation after soldering. The solder powder melts and shrinks, and the solder joints are metallurgical connections, which are equivalent to the soldering effect of solder paste. Compared with rosin solder paste, the solder residue becomes thermosetting adhesive to enhance the solder joint strength, corrosion resistance, and insulation. FSA-305 is a type of no-clean solder paste. It is a superior solder for medium temperature soldering.

Recovery method: Don't open the bottle cap until the solder is close to room temperature. No more than two times of temperature return.

Recovery time: Generally, paste should be removed from refrigeration 2~3 hours before use. Actual time to reach thermal equilibrium will vary with container size.Note: Do not open the bottle cap without sufficient "recovery" or shorten the recovery time by heating the paste.
Operating Environment: The best operating temperature and humidity are 20-25°C and 40-60%RH, respectively. Reflow soldering in a nitrogen atmosphere is recommended.

Stencil Cleaning Solvent: Ether. Propylene glycol monomethyl ether (PM) is preferred.

Recovery method: Don't open the bottle cap until the solder is close to room temperature. No more than two times of temperature return.

Recovery time: Generally, paste should be removed from refrigeration 2~3 hours before use. Actual time to reach thermal equilibrium will vary with container size.Note: Do not open the bottle cap without sufficient "recovery" or shorten the recovery time by heating the paste.
Operating Environment: The best operating temperature and humidity are 20-25°C and 40-50%RH, respectively. Reflow soldering in a nitrogen atmosphere is recommended.

Stencil Cleaning Solvent: Ether. Propylene glycol monomethyl ether (PM) is preferred.

Fitech produces SAC305 solder powder with excellent sphericity, uniform particle size, and low oxygen content, and it is mixed with halogen-free flux to prepare FTD-305 series solder paste. The solder paste has superior adhesion before soldering. Solvent volatilizes very slightly during soldering. Moreover, FTD-305  has outstanding wettability, anti-slump,anti-collapse and less residual performance.There is no solder ball formation during soldering. The product is an ideal solder for micro-bump ultra-fine-pitch packaging.

Recovery method: Don't open the bottle cap until the solder is close to room temperature. No more than two times of temperature return.Recovery

time: Generally, paste should be removed from refrigeration 2~3 hours before use. Actual time to reach thermal equilibrium will vary with container size.

Note: Do not open the bottle cap without sufficient "recovery" or shorten the recovery time by heating the paste

Operating Environment: The best operating temperature and humidity are 20-25°C and 40-50%RH, respectively. Reflow soldering in a nitrogen atmosphere is recommended.

Fitech produces SAC305 solder powder with excellent sphericity, uniform particle size, and low oxygen content, and it is mixed with halogen-free flux to prepare FTP-305 series solder paste. The solder paste has a superior adhesion effect before soldering. Solvent volatilizes very slightly during soldering. Moreover, FTP-305 has outstanding wettability, anti-slump, anti-collapse and less residual performance.There is no solder ball formation during soldering. The product is ideal for micro-bump ultra-fine-pitch packaging.

Recovery method: Don't open the bottle cap until the solder is close to room temperature. No more than two times of temperature return.

Recovery time: Generally, paste should be removed from refrigeration 2~3 hours before use. Actual time to reach thermal equilibrium will vary with container size.

Note: Do not open the bottle cap without sufficient "recovery" or shorten the recovery time by heating the paste.

Operating Environment: The best operating temperature and humidity are 20-25°C and 40-50%RH, respectively. Reflow soldering in a nitrogen atmosphere is recommended.

The main alloy of FWS-305P water-based solder paste is tin-silver-copper (SAC305). The  water-based solder paste product is prepared by mixing T5, T6, T7, or T8 alloy powder with halogen-free environmental-protection flux. solder paste is tin-silver-copper (SAC305). The  solder paste product is prepared by mixing T5, T6, T7, or T8 alloy powder with halogen-free environmental-protection flux.

1. The alloy has excellent sphericity, uniform particle size, and low oxygen content;
2. Outstanding halogen-free flux is used;
3. It has superior adhesion performance before soldering;
4. The solder paste has excellent viscosity stability and superior stencil life;
5. It is an ideal solder with extraordinary water cleaning performance for high-reliability micro-bump ultra-fine-pitch packaging.

Recovery method: Don't open the bottle cap until the solder is close to room temperature. No more than two times of temperature return.Recovery

time: Generally, paste should be removed from refrigeration 2~3 hours before use. Actual time to reach thermal equilibrium will vary with container size.
Note: Do not open the bottle cap without sufficient "recovery" or shorten the recovery time by heating the paste

Operating Environment: The best operating temperature and humidity are 20-25°C and 40-55%RH, respectively. Reflow soldering in a nitrogen atmosphere is recommended.

Cleaning Instruction: There is a small amount of residue around the pad after reflow, which should be cleaned with deionized water as soon as possible. The temperature of deionized water is between 25 and 40℃.
