What is the best way to manually apply solder paste?

Manual solder paste scraping is a critical step in hand soldering or rework during electronics manufacturing, requiring a balance of precision, efficiency, and safety. Below are detailed step optimization methods and precautions to help you achieve optimal results:

I. Tool and Material Preparation

1. Spatula Selection

Material: Stainless steel spatulas are preferred for their durability and ease of cleaning. For static-sensitive components, anti-static plastic or polyurethane spatulas may be used.

Shape and Size: Select based on PCB layout. For simple circuits, use a squeegee matching the board width; for complex high-density circuits, use a smaller squeegee (10-15mm wide) to enhance control precision.

Angle: Maintain a 45° to 60° angle between the squeegee and PCB surface during operation. This angle most effectively pushes solder paste and ensures even rolling ahead of the blade.

2. Solder Paste Selection

Type: Select lead-free or leaded solder paste based on environmental regulations (e.g., RoHS) and process requirements.

Particle Size: Solder paste particle size must match component lead pitch. For example, Type 4 paste is recommended for 0402 components, while finer pitches like 0201 or 0.4mm pitch BGAs require Type 5 paste.

Condition: Thaw paste from refrigeration before use and thoroughly stir until uniform texture and glossy appearance are achieved. This prevents printing defects caused by sedimentation or separation.

3. Auxiliary Tools

Prepare an anti-static workbench and a magnifying glass or microscope for inspection.

Have cleaning tools ready, such as lint-free paper, industrial-grade isopropyl alcohol (IPA), or specialized stencil cleaner.

Use a vacuum table or magnetic fixture to securely hold the PCB.

II. Operating Procedures

PCB Fixation: Securely anchor the PCB using a vacuum table or magnetic fixture to prevent any movement. This is fundamental to ensuring precise printing alignment.

Stencil Positioning: Align the stencil precisely with the pads on the PCB. Use alignment pins or specific markings for this purpose. After alignment, secure the stencil's four corners with specialized tape or magnets to ensure it remains flat and immovable.

Solder Paste Loading: Scoop an appropriate amount of solder paste (approximately one-third the volume of the required printing area) with a squeegee blade. Place it at the front edge of the stencil opening or along the squeegee's path. Start with a smaller quantity, as additional paste can be added later.

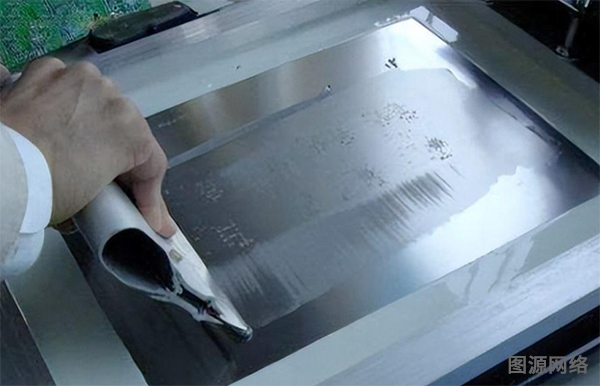

Squeegee Action:

Maintain a 45°-60° angle with the squeegee, applying moderate and consistent pressure (sufficient to clear all solder paste from the stencil surface). Move the squeegee steadily and smoothly across the stencil in a single pass at 20-40 mm/s.

After squeegeeing, lift the squeegee vertically first, then carefully peel the stencil straight up to complete removal.

Inspection and Correction:

Immediately inspect solder paste deposition using a magnifying glass. The ideal state is uniform, full paste coverage with sharp edges on each pad.

If excess paste or bridging occurs, gently remove the excess using the tip of the squeegee or desoldering wick.

If insufficient paste or gaps are found, precisely supplement the area using a dispensing needle dipped in a small amount of solder paste.

III. Key Techniques and Precautions

Environmental Control: Optimal operating conditions are 22-26°C (72-79°F) temperature and 40-60% RH humidity. Avoid high humidity causing solder paste moisture absorption or low humidity causing excessive solvent evaporation.

Force and Angle Control: Apply light pressure (approx. 2-4 N/cm) with a steady angle. Excessive force may damage fine stencils or cause solder paste leakage.

Stencil Cleaning: After every 2-3 prints or during downtime, thoroughly clean the stencil bottom with IPA-dampened lint-free paper to prevent hardened residue from clogging apertures. Soak stubborn stains in specialized cleaner before gently wiping.

Residue Management: Seal unused solder paste and refrigerate at 0-10°C. Once opened, use within 48 hours for optimal performance. Dispose of waste according to environmental regulations.

IV. Common Issues and Solutions

Uneven Solder Paste Thickness

Cause: Typically due to inconsistent squeegee pressure or angle.

Solution: Practice and maintain a steady, uniform squeegeeing motion, ensuring the angle remains between 45°-60°.

Bridging or Short Circuits

Cause: Excessive solder paste volume, damaged stencil apertures, or excessive squeegee pressure.

Solution: Reduce solder paste volume, inspect and replace damaged stencils, and decrease squeegee pressure.

Incomplete Pad Coverage

Cause: Misaligned stencil, excessive squeegee speed, or blocked stencil apertures.

Solution: Re-align the stencil precisely, appropriately reduce squeegeeing speed, and clean clogged stencil apertures.

Solder Paste Hardening and Blockage

Cause: Insufficient cleaning intervals or excessive environmental humidity accelerated solvent evaporation in the solder paste.

Solution: Shorten cleaning intervals, maintain clean stencil undersides, and control environmental humidity below 50%.

V. Safety and Standards

Anti-static Measures: Operations must be conducted on an anti-static workbench while wearing a reliable anti-static wrist strap.

Personal Protection: Wear gloves and safety goggles during operation to prevent solder paste contact with skin or eyes. If accidental contact occurs, immediately rinse with copious amounts of water.

Ventilation Requirements: Operate in areas equipped with ventilation systems to prevent prolonged inhalation of fumes emitted by the solder paste.

By following these steps and techniques, manual solder paste application can achieve results comparable to machine printing. This method is particularly suitable for small-batch production, R&D prototyping, or rework scenarios. For higher efficiency, consider upgrading to a semi-automatic desktop stencil printer or dispensing machine.
