What is the best tin alloy content for solder paste in general?

Tin alloy content (85% ~ 92%) in the welding performance, process suitability, cost and environmental protection to achieve a dynamic balance between the specific selection needs to be combined with the size of the component, heating mode, reliability requirements and other dimensions of a comprehensive assessment.

I. Quantitative effect of tin alloy content on soldering performance

1. Mechanical properties of soldered joints

Fullness and strength:

Tin alloy content of every 1% reduction, solder thickness reduction of about 1.2% ~ 1.8% (experimental data: 85% → 80% when the thickness decreased by 15%);

Recommended range: General reflow soldering preferred 88% ~ 90% tin content, taking into account the cost and reliability (such as SAC305 alloy).

Fatigue resistance:

High tin content (>90%) can refine the grain structure and improve the solder joint resistance to thermal cycling;

Case: 88% tin content SAC305 in automotive electronics through -40 ℃ ~ 150 ℃ × 1000 cycles, resistance change rate ≤ 3%.

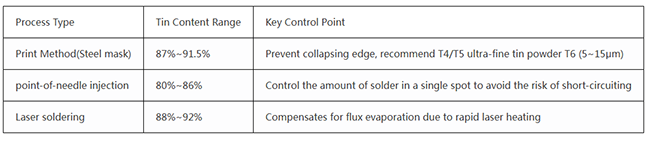

2.Process adaptability

II. the application scenarios of tin content optimization program

1. Consumer electronics (high-density packaging)

Requirements: Micro components (0201/01005) soldering accuracy and reliability.

Program:

90% tin content + SnAgCu alloy: improve wettability, reduce soldering;

Ultra-fine tin powder (T5/T6 grade): Improve printing resolution to below 50μm.

Achievement: A cell phone manufacturer increased the yield of 0201 components from 92% to 98%, and the single board rework rate decreased by 40%.

2. Automotive electronics (high reliability)

Requirements: Pass AEC-Q100 standard, anti-vibration and thermal shock.

Program:

88% tin content + SAC high reliability alloy: melting point 217°C, balanced strength and toughness;

Nitrogen protected reflow soldering: reduce voiding to <5%.

Test data: 10 years of road test shows that the solder joint failure rate <0.002%.

3. LED packaging (low temperature soldering)

Requirements: to avoid high temperature damage to the light-emitting layer (e.g. GaN chips).

Program:

86% tin content + SnBi alloy (Sn42Bi58/Sn42Bi57.6Ag0.4/FL170): melting point of 138 ℃, thermal stress reduction of 60%;

Vacuum reflow soldering: further eliminate voids and improve the stability of light efficiency.

Effect: a MiniLED company reduced the chip soldering void rate from 20% to less than 5%, and the brightness attenuation was slowed down by 30%.

III. Strategies for balancing cost and environmental protection

1. Cost optimization

Tin content cost curve:

Tin content of every 1% increase, the cost of solder paste increased by 2% ~ 3% (such as 92% than 85% about 14% more expensive);

Economical choice: Prioritize 85%~88% tin content under the premise of meeting performance (e.g. general electronic assembly).

2. Environmental compliance

RoHS directive response:

Lead-free solder paste needs to use SnAgCu (85%~90%), SnBi (86%~88%) and other alloys;

Exemption scenarios: aerospace and other special areas can be temporarily used SnPb alloy (customer written authorization is required).

IV. the customization of special scenarios

1. High-frequency communication equipment (5G/6G)

Demand: low loss, high conductivity (signal integrity).

Program:

91% tin content + pure tin powder (Sn99.3%): control impurities (e.g. Cu, Ag) below 0.7%;

Test result: Insertion loss reduced by 0.2dB at 10GHz frequency, VSWR <1.2.

2. Aerospace electronics

Requirements: resistance to extreme temperature (-55℃~125℃), radiation resistance.

Program:

89% Tin content + SnPb alloy (RoHS exempt): melting point 183°C, wide soldering window;

Reinforcement process: laser welding + bottom filler rubber is used to enhance mechanical stability.

Case: a satellite project realized 15 years of orbital operation with zero solder joint failure through this solution.

Decision Tree: How to quickly select the tin content?

Clarify the core requirements:

High reliability? Low temperature soldering? High frequency signals? Extreme environments?

Match process type:

Print/dot peen/laser? Reflow/Vacuum Soldering?

Calibration cost environmental:

Does it accept lead-free? Does the budget allow for high tin content?

Refer to industry examples:

90% SnAgCu for consumer electronics, 86% SnBi for LED, 88% SAC305 for automotive.

The "Golden Rule" of Tin Content Selection

There is no absolute optimization, only scenario optimization: within the range of 85%~92%, every 1% adjustment is a trade-off between performance, cost and reliability;

Data-driven decision-making: establish the relationship model between tin content and solder joint strength, void rate, and cost through DOE experiments;

Forward-looking layout: with the emergence of new technologies such as 4D printing and bio-based fluxes, the choice of tin content will incorporate more intelligent variables.

As materials scientist Cui Yi said, "Good materials design is the art of finding the optimal solution under constraints." The selection of tin content is the vivid practice of this art in the field of electronics manufacturing.
