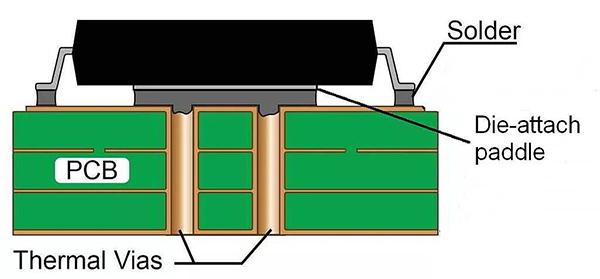

What causes solder paste to remain in the heat sink holes?

Failure to thoroughly clean solder paste from the heat dissipation holes may be caused by various factors, including the cleaning process, material properties, equipment operation, or design flaws. The following are the specific causes and analysis:

I. Cleaning Process Factors

Inappropriate choice of cleaning agent

Incompatible solvent type: Using a water-based cleaning agent to clean oily solder paste (such as rosin-based flux) or vice versa will result in insufficient solubility.

Insufficient concentration: If the cleaning agent is diluted too much, the concentration of active ingredients will be too low to thoroughly dissolve residues.

Compatibility Issues: The cleaning agent reacts with the PCB substrate (e.g., FR-4, metal heat spreader layers) or component surface coatings, forming a stubborn, difficult-to-remove layer.

Inappropriate Cleaning Parameters

Temperature Too Low: At low temperatures, the viscosity of the cleaning agent increases, reducing its flowability and making it difficult to penetrate the interior of heat dissipation holes.

Insufficient Duration: If the cleaning time is too short, the solvent cannot fully dissolve the solder paste residue.

Insufficient pressure: During spray or ultrasonic cleaning, low pressure or power fails to generate sufficient impact force to remove residues inside the holes.

Limitations of cleaning methods

Single cleaning method: Relying solely on spraying or immersion without combining auxiliary methods such as ultrasonic cleaning or brushing results in limited cleaning effectiveness for micro-pores.

Insufficient coverage: When heat dissipation holes are vertical or angled, the cleaning solution fails to fully cover the inner walls of the holes, creating cleaning blind spots.

II. Material and Structural Design Factors

Solder Paste Characteristics

High-viscosity or high-residue solder paste: Certain no-clean or low-residue solder pastes may contain special fluxes, making them difficult to clean.

Residue after curing: If the solder paste has partially cured before cleaning (e.g., due to high-temperature exposure or prolonged storage), it will form hardened residues.

Venting Hole Design:

Excessively Small Hole Diameter: Very small hole diameters (e.g., <0.5 mm) restrict the entry of cleaning solution, making it easy for residues to accumulate.

Excessive Hole Depth: Deep holes increase the flow resistance of the cleaning solution, making it difficult to rinse thoroughly.

Hole Wall Roughness: Rough hole walls increase the surface area for residue adhesion, reducing cleaning efficiency.

PCB Surface Treatment:

Coating Effects: Surface treatments such as electroless gold plating or OSP may alter the hydrophilicity of the hole walls, affecting the penetration of the cleaning solution.

Pre-existing Contamination: Contaminants such as grease and fingerprints acquired during PCB manufacturing or transportation may combine with solder paste residues to form composite deposits.

III. Equipment and Operational Factors

Cleaning Equipment Limitations

Nozzle Clogging: Clogged nozzles in the spray system result in uneven distribution of cleaning solution and insufficient flow in the vent hole areas.

Mismatched Ultrasonic Frequency: High-frequency ultrasonic waves (e.g., >100 kHz) are suitable for cleaning fine particles, while low frequencies may fail to effectively dislodge residues.

Incomplete Drying: Residual moisture after cleaning may carry trace amounts of solder paste, which can redeposit during the drying process.

Operational Process Deficiencies

Insufficient Pre-cleaning: Failing to remove large particles (e.g., via brushing or compressed air) before proceeding directly to the main cleaning stage.

Inadequate Post-processing: Failure to dry components promptly after cleaning or to implement anti-static measures, leading to secondary contamination.

Operator Negligence: Examples include failure to replace cleaning solutions regularly or to calibrate equipment parameters.

IV. Environmental and Storage Factors

Environmental Temperature and Humidity

Low-temperature environments: The viscosity of the cleaning agent increases, reducing its flowability and affecting cleaning performance.

High-humidity environments: Water-based cleaning agents may experience changes in concentration due to moisture absorption, or residual moisture may accelerate solder paste oxidation.

Storage Conditions

Expired cleaning agents: Cleaning agents past their expiration date lose effectiveness and have reduced dissolving power.

Excessive PCB Storage Time: Residual solder paste reacts with airborne contaminants, forming compounds that are more difficult to clean.

Recommended Solutions

Optimize the Cleaning Process

Select a cleaning agent compatible with the solder paste type, and adjust the concentration and temperature.

Select easily cleanable solder paste or water-soluble solder paste to facilitate cleaning.

Combine multiple cleaning steps, such as spray, ultrasonic, and brushing, and extend the cleaning time for critical areas.

Install a circulation and filtration system for the cleaning solution to prevent secondary contamination.

Design Improvements

Optimize the size and surface roughness of ventilation holes to reduce residue buildup.

Include cleaning test holes in the PCB design phase to facilitate process validation.

Enhanced Equipment Maintenance

Regularly inspect critical components such as nozzles and ultrasonic transducers to ensure stable performance.

Introduce automated cleaning equipment to reduce human operational errors.

Environmental Control and Storage

Maintain stable temperature and humidity in the cleaning workshop to avoid extreme conditions.

Strictly manage the storage periods for cleaning agents and PCBs to prevent the use of expired materials.

By systematically addressing the above factors, the issue of incomplete solder paste cleaning in heat dissipation holes can be effectively resolved, thereby improving product reliability and yield.
