Understanding the Core Logic of the Two-Stage Reflow Process

The core logic of a two-stage reflow process is to use sequential soldering and precise temperature control to solve the challenges of soldering multiple components across multiple package levels. At the same time, it balances the temperature tolerances of different components to ensure solder-joint reliability and product performance. The process is analyzed below from five perspectives: its fundamental nature, primary objectives, implementation, applications, and critical control points.

1. Process Fundamentals: Thermal Management Through Sequential Soldering

Two-stage reflow is not simply reheating the assembly. It uses two independent high-temperature cycles to solder components with different package levels or thermal tolerances in stages. At its core, temperature-gradient control prevents a single high-temperature cycle from damaging sensitive components while enabling reliable interconnection in multilayer structures. For example:

Mobile-phone PoP package: The lower memory chip must withstand soldering at 245–260 °C, while the upper CPU may have a maximum temperature tolerance of only 230 °C. In the first reflow, the memory chip is soldered at the higher temperature; in the second, the CPU is soldered at a temperature 10–20 °C lower, preventing oxidation or thermal-stress failure in the upper chip.

Automotive-electronics ADAS module: An MCU rated to 150 °C and a MEMS sensor rated to 80 °C must be assembled together. High-temperature solder paste secures the MCU during the first reflow; low-temperature solder paste bonds the sensor during the second reflow, preventing damage to the sensor during the second heating cycle.

2. Primary Objective: Balance Soldering Requirements and Component Reliability

The two-stage reflow process is intended to resolve three fundamental conflicts:

Multilevel soldering conflict: In 3D packages, for example, the lower-layer chip requires high-temperature soldering to ensure mechanical strength, whereas the upper-layer chip requires low-temperature soldering to avoid damage.

Temperature-tolerance conflict: In mixed-component packages, high-power devices (such as power modules) require high-temperature soldering, while sensitive devices (such as sensors) need low-temperature protection.

Soldering-precision conflict: In high-density packages, fine-pitch devices (such as 0.3 mm-pitch BGAs) require staged soldering to reduce the risk of bridging, open joints, and insufficient soldering.

3. Implementation: Temperature-Gradient Control and Material Matching

Reflow profile design:

First reflow: Set the profile for the high-melting-point solder. Use a peak temperature of 245–260 °C and a soak time of 30–60 seconds to ensure complete wetting of the lower-layer solder joints.

Second reflow: Set the peak temperature 10–20 °C below the first cycle and control the ramp rate at 1–2 °C/s to prevent component cracking from thermal stress. For example, use SAC305 (melting point: 217 °C) in the first cycle and SnBi58 (melting point: 138 °C) in the second, providing a melting-point difference of at least 79 °C. Alternatively, use FL170 (melting range: 137–145 °C; peak temperature: 170 °C) in the second cycle. In both cases, the melting-point separation is sufficient to prevent the lower-layer joints from remelting during the second heating cycle.

Solder selection:

High-temperature foundation: Use a high-temperature-resistant solder for the first cycle (such as SAC305 with a Bi/Ni strengthening phase) to improve the heat resistance and mechanical strength of the joints.

Low-temperature second stage: Use a low-temperature solder for the second cycle (such as SnBi52 or FL170 alloy) with a melting point at least 30 °C below that of the first-cycle solder, preventing the lower-layer joints from remelting.

Rapid-solidification solder: For ceramic substrates or flexible printed circuit boards, use nanocrystalline silver particles to optimize alloy solidification kinetics, shorten solidification time by more than 30%, and reduce solder tailing and bridging.

Equipment support:

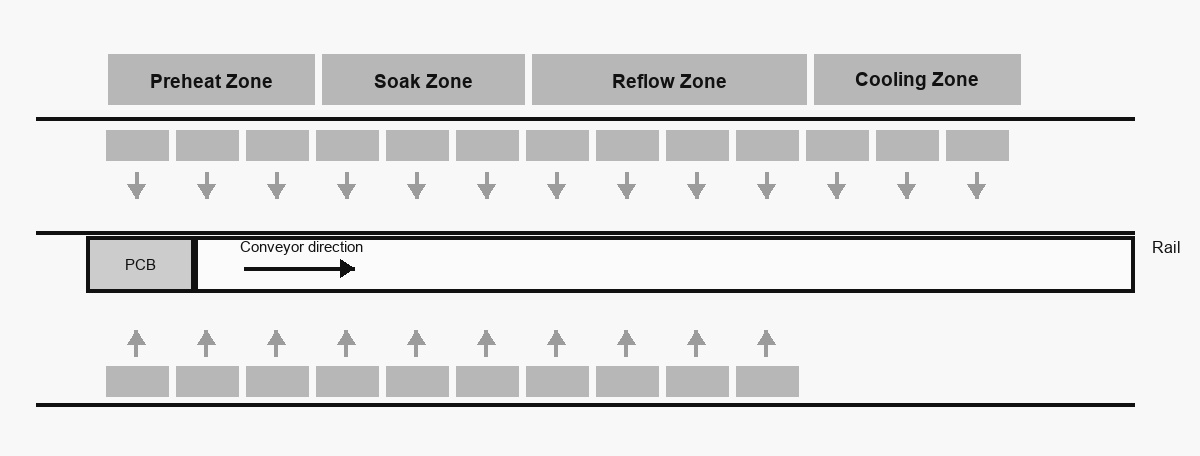

Multi-zone reflow oven: At least 8–10 heating zones, a nitrogen atmosphere to reduce oxidation, and temperature accuracy of ±1 °C.

High-precision stencil printer: Printing accuracy of ≤±0.01 mm to ensure precise solder paste deposition.

AOI and X-ray inspection equipment: Inspect after both soldering cycles. After the first cycle, reject defects in lower-layer solder joints; after the second, use X-ray to inspect hidden joints such as BGAs.

4. Applications: High-Density Packaging and Harsh Environments

Consumer electronics:

Smartphones: PoP packages (CPU + memory) and system-in-package (SiP) assemblies integrating the main controller, RF devices, and sensors.

Wearable devices: FPC connections in smartwatches and complex mainboards in VR devices.

Automotive electronics:

ADAS sensor modules: Assemble high-temperature-resistant MCUs and low-temperature MEMS sensors in the same module.

IGBT power modules: Use two-stage reflow to balance the soldering requirements of high-power devices and control circuitry.

Industrial and energy applications:

Industrial variable-frequency drives: Dense component soldering on power PCBs.

Large backlight modules: Solder aluminum-core PCBs in Mini LED backlight modules larger than 75 inches, using two-stage reflow to reduce thermal deformation.

5. Critical Control Points: Five Principles for Preventing Failure

Melting-point separation: Maintain a melting-point difference of at least 15 °C between the two solders; preferably use a 'gradient alloy' system with a difference of at least 30 °C.

Reflow-profile optimization: Use gradual heating and cooling to reduce thermal stress. Remove PCB residue after the first soldering cycle so that it does not affect printing for the second.

Component temperature-rating screening: At the peak temperature of the second reflow, each component's temperature rating must be at least the peak temperature plus 20 °C.

Consistent positioning datum: Use the same reference datum for both placement operations to prevent component offset.

Enhanced inspection: Do not allow assemblies with first-cycle defects to proceed to the next process. After the second cycle, verify reliability with an 85 °C/85% RH damp-heat test for 500 hours.

Summary: Two-Stage Reflow as a 'Precision Solution'

By combining zone-specific soldering with material-process co-innovation, the two-stage reflow process moves complex packaging from 'trial and error' to 'precise matching.' Its core logic can be summarized as follows:

Balance requirements through sequential soldering: Use two independent heating cycles to resolve the soldering conflicts caused by multiple package levels and different component temperature tolerances.

Control reliability through temperature gradients: Combine solders with a melting-point difference of at least 15 °C and use precise temperature control to prevent joint remelting or thermal damage.

Push performance limits through material innovation: Use high-temperature strengthening phases, low-temperature ultra-fine powders, and rapid-solidification alloys to meet the needs of high-density packages and harsh environments.

In the future, as 3D packaging and chiplet technology become more widespread, two-stage reflow will shift from an 'optional solution' to an 'essential process.' Continued innovation in solder paste materials (such as low-temperature, high-strength, lead-free solders) will further expand its applications.
