The physical characteristics and application areas of tin powder

As an important metal powder material, tin powder, by virtue of its unique physicochemical properties, shows a wide range of application value in a number of industrial fields.The following is a detailed description from both physical characteristics and application areas:

I. Physical Characteristics of Tin Powder

Appearance and form

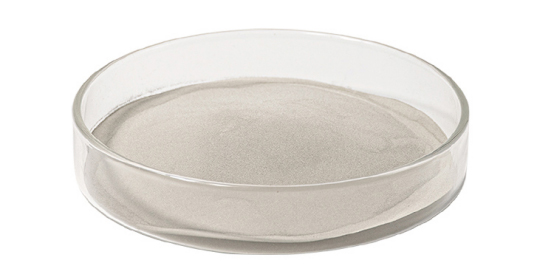

Tin powder is usually presented as grey or silver-white powder with metallic luster, soft texture and ductility.It has a variety of particle forms, including spherical, irregular shapes, etc., with a wide range of particle size distribution (e.g., 150μm, 77μm, 45μm, 15μm, 6μm, etc.), and the different particle sizes directly affect its application performance.

Physical Properties

Melting point and boiling point: The melting point of tin powder is about 231.9°C, and the boiling point is as high as 2270°C to 2507°C, which indicates that it has high thermal stability.

Density: The relative density is 7.28 to 7.31, which is a high-density metal powder.

Solubility: Tin powder is insoluble in water, but soluble in concentrated hydrochloric acid, sulphuric acid, concentrated nitric acid and hot caustic alkali solutions.It dissolves slowly in cold dilute acid or alkali and is almost insoluble in acetic acid.

Chemical stability and reactivity

Oxidation: stable in air, but easy to oxidise to form a protective layer of tin dioxide, especially in humid environments where the oxidation speed is accelerated.

Reactivity: reacts with strong acids (e.g. concentrated sulphuric acid, nitric acid), strong bases and certain oxidising agents (e.g. hot sulphuric acid), but reacts slowly in cold dilute acids or bases.

Other properties

High-temperature flammability: Tin powder is flammable at high temperatures, so it is necessary to pay attention to fire safety.

Surface activity: Nano-scale tin powder has higher chemical activity due to its large specific surface area, and is widely used in catalysis field.

Second, the application field of tin powder

Electronic industry

Manufacture of electronic components: Tin powder is a key material in the manufacture of electronic components such as resistors, capacitors, printed circuit boards (PCB), etc., taking advantage of its excellent conductivity and solderability.

Soldering materials: as the core component of solder paste, tin powder plays an irreplaceable role in semiconductor packaging, chip soldering and precision electronic assembly, ensuring reliable connections between electronic components.

High-density soldering: Fine-grained tin powder (such as No. 5 powder, No. 6 powder) is suitable for miniaturisation and high-density circuit board soldering to meet the development trend of miniaturisation and thinning of electronic products.

Metallurgical industry

Alloy preparation: Tin powder can be alloyed with copper, lead and other metals to make bronze, tin-lead alloy, etc. These alloys are widely used in the fields of machinery manufacturing, electrical components and bearing materials.

Solder application: Hard solder is used for structural connections in automobiles and aircraft, while soft solder is used for low-temperature soldering of electronic components to ensure the strength and reliability of soldered joints.

Powder Metallurgy: As an additive, tin powder can reduce the sintering temperature, improve the properties of porous materials, and increase the density and strength of products.

Chemical industry

Catalyst: Tin powder is used as a catalyst in organic synthesis reactions (such as hydrogenation and dehydrogenation) to improve reaction efficiency and reduce reaction temperature.

Reducing agent: In the production of insurance powder, dyestuff intermediates, etc., tin powder is used as a reducing agent to participate in the redox reaction to ensure the purity and quality of the products.

Functional additives: Tin powder can improve the abrasion resistance of rubber and plastic, enhance the adhesion and weather resistance of paint, and extend the service life of products.

Manufacturing Industry

Lubrication additive: Nano tin powder added to lubricating oil can form a self-lubricating film in the friction process, significantly reducing the coefficient of friction and improving the operating efficiency of mechanical equipment.

Surface treatment: Tin powder is used in the conductive coating treatment of metals and non-metals to enhance the performance of microelectronic devices and ensure the stability and speed of signal transmission.

Anti-corrosion and wear-resistant: as an anti-corrosion or wear-resistant agent, tin powder can extend the service life of metal coatings and paints and reduce maintenance costs.

Emerging Fields

New energy: Tin powder is used in battery materials (e.g. lithium-ion battery anode) to enhance the energy density and cycle stability of the battery by taking advantage of its high theoretical capacity (990mAh/g) and good electrical conductivity.

Aerospace: Tin powder's high temperature stability and lightweight properties make it an ideal choice for the development of high-temperature resistant composite materials to meet the high demand for material performance in aerospace vehicles.

Environmental protection packaging: with the enhancement of environmental awareness, the non-toxic environmental attributes of tin powder has gradually been attached importance to be used in food, pharmaceutical packaging and other fields, to ensure the safety of packaging materials and environmental protection.

Summary: Tin powder plays an important role in many fields such as electronics, metallurgy, chemical industry, manufacturing and so on with its unique physicochemical properties.With the progress of science and technology and environmental protection needs, the application areas of tin powder will be further expanded to provide more innovative solutions for various industries.In the future, the research and application of tin powder will pay more attention to high performance, environmental protection and sustainable development, and promote the upgrading and transformation of related industries.
