How to estimate the amount of solder paste to print?

Estimating solder paste printing volume is a critical step in surface mount technology (SMT), directly impacting soldering quality and costs. Below is a step-by-step estimation method and key considerations:

I. Precise Estimation Methods

1. Template Opening Estimating Method (Preferred in Design Phase)

Formula:

V=∑(Ai×T)×(1+K)

Parameter Description:

Ai: Open area of a single pad (rectangular pad = length × width; circular pad = π × (diameter/2)²)

T: Stencil thickness (typically 0.12–0.18 mm; 0.12 mm recommended for fine-pitch components)

K: Correction factor (0.1–0.3; use lower values for higher equipment precision)

Optimization Techniques:

For high-density components like BGAs, use stepped stencils (reducing thickness by 0.03mm in the central area) to minimize bridging.

Opening Shape Design: Rectangular pads with 45° chamfers; circular pads with 0.05mm-wide drainage grooves.

Example:

A PCB with 500 0603 pads (area 0.3 × 0.15 = 0.045mm²) uses a 0.15mm stencil with a correction factor of 0.2:

V=500×0.045×0.15×1.2=4.05mm³

2. Component Count Method (Quick Estimate)

Formula:

V = N × V0 × (1 + M)

Parameter Explanation:

N: Total number of solder joints

V0: Single-point volume reference (0201 component = 0.015mm³; 0402/0603 = 0.03~0.05mm³; QFP pin = 0.05~0.08mm³)

M: Loss factor (0.1~0.2; use higher value for fine-pitch components)

Optimization Techniques:

For mixed-component PCBs, calculate by type-specific zones and then aggregate.

For fine-pitch components like 0.3mm QFN, reduce single-point volume by 20% to compensate for molding difficulty.

II. Process Parameter Optimization

1. Key Points in Stencil Design

Area Ratio: Opening Area / Pad Sidewall Area ≥ 0.66 (Prevents Edge Collapse)

Aspect Ratio: Opening Width / Stencil Thickness ≥ 1.5 (Prevents Blockage)

Opening Proportion: Rectangular Pad Length-to-Width Ratio ≤ 3:1 (Excessive Length Causes Residue)

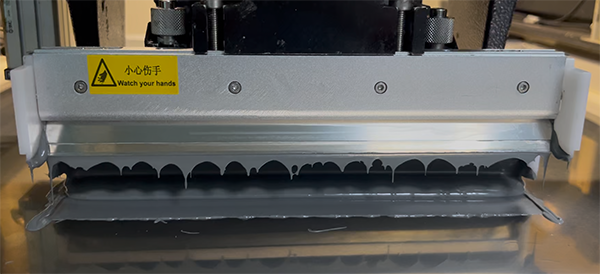

2. Printing Parameter Control

Squeegee Pressure: 0.1–0.3 N/mm (Excessive pressure causes solder paste extrusion; insufficient pressure leads to inadequate filling)

Printing Speed: 30–100 mm/s (Excessive speed prevents adequate solder paste rolling; insufficient speed reduces efficiency)

Separation Speed: 0.1–0.3 mm/s (Excessive speed causes stringing; insufficient speed leads to edge collapse)

Cleaning Frequency: Clean stencil every 10–20 prints (residue requiring alcohol wipe if hardened)

3. Environmental and Equipment Requirements

Temperature/Humidity: 22–26°C, 40%–60% RH (excessive humidity causes moisture absorption and solder blistering)

Stencil Tension: Initial ≥40 N/cm, post-use ≥30 N/cm (Insufficient tension causes printing misalignment)

Solder Paste Selection: For fine-pitch components (e.g., 0.3mm BGA), use Type 4 paste (particle size 5–15μm)

III. Verification and Improvement Methods

1. First Article Inspection (SPI)

Key Metrics:

Volume: Target value ±15% (e.g., calculated value 100mm³; actual must be 85~115mm³)

Height: Template thickness × 80%~120% (e.g., 0.15mm template; height should be 0.12~0.18mm)

Offset: ≤0.1mm (otherwise adjust MARK point recognition parameters)

2. Process Monitoring (DOE Experiment)

Experimental Design:

Select three parameters: pressure, speed, and separation speed. Set three levels for each (e.g., pressure: 0.1/0.2/0.3 N/mm). Conduct nine experiments using an L9 orthogonal array.

Optimization Goal:

Achieve ≥99.5% soldering yield at minimum paste consumption (verified via X-ray inspection for bridging/cold solder joints).

3. Long-Term Improvement

Data-Driven Approach:

Record shift-based print volume, SPI data, and rework rate to generate control charts. Analyze causes (e.g., stencil wear, solder paste batch variation) when three consecutive data points exceed control limits.

Stencil Maintenance:

Inspect aperture dimensions after every 5,000 prints. Replace stencils when wear exceeds 0.02mm.

IV. Efficient Operational Techniques

Emergency Response:

Insufficient print volume: Temporarily increase pressure or reduce separation speed (requires subsequent parameter adjustment)

Excessive print volume: Immediately clean stencils and inspect squeegee wear (causing uneven pressure)

Cleaning Protocol:

Dry Cleaning: Wipe the stencil's underside with a lint-free cloth before the first part of each shift.

Wet Cleaning: Clean with alcohol and ultrasonic cleaning every 200 prints (to prevent residue hardening).

Stencil Tension Management:

Initial tension for new stencils ≥40 N/cm. Inspect weekly after use; repair if tension drops below 30 N/cm.

V. Summary: Optimized Implementation Process

Design Phase: Calculate theoretical usage based on component type and stencil aperture

Initial Inspection Phase: Verify print volume via SPI, adjust parameters to target range

Mass Production Phase: Monitor data fluctuations, perform regular stencil and equipment maintenance

Improvement Phase: Optimize parameter combinations through DOE experiments to reduce material waste

This method achieves precise solder paste printing volume control through a closed-loop management cycle of "Calculation-Verification-Optimization-Standardization." It is suitable for high-reliability applications such as high-density PCBs and automotive electronics, reducing material waste by 15%–30% while maintaining soldering defect rates below 0.5%.
