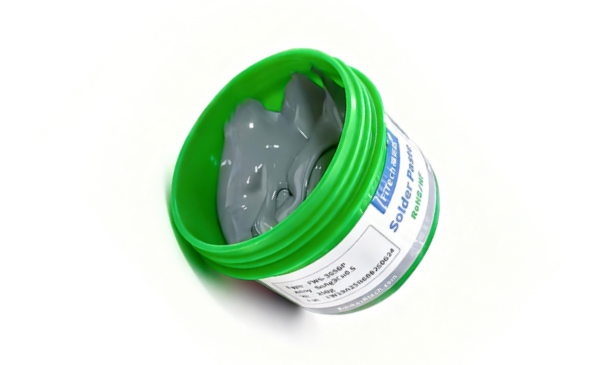

Can leaded solder paste and lead-free solder paste be used together?

Lead-containing solder paste and lead-free solder paste should not be used together. The primary reasons are as follows:

I. Chemical Composition Conflict

Lead-Free Solder Paste: Primarily composed of elements such as tin (Sn), silver (Ag), and copper (Cu), with lead content below 1000 ppm (compliant with RoHS environmental standards). It does not contain lead, which is harmful to human health and the environment.

Lead-Containing Solder Paste: Primarily composed of tin (Sn) and lead (Pb) alloys (e.g., Sn63Pb37). Higher lead content enhances solder flowability but poses health and environmental risks.

Consequences of Mixed Use: Results in lead contamination, creating non-environmentally compliant products. Lead atoms infiltrate grain boundaries in lead-free solder joints, forming brittle interlayers that drastically reduce joint strength. This makes joints prone to fracture under vibration or high-temperature conditions.

II. Physical Property Incompatibility

Melting Point Differences:

Lead-free solder paste typically has a melting point above 217°C (e.g., SAC305 alloy at 217-220°C).

Lead-containing solder paste has a melting point around 183°C (e.g., Sn63Pb37 alloy).

Consequences of Mixing: Temperature consistency during soldering becomes difficult to achieve, potentially causing issues like cold solder joints, incomplete soldering, or missed soldering, which compromise joint reliability.

Viscosity Differences:

The differing viscosities of the two solder pastes can affect printing and coating results when mixed, leading to inconsistent joint sizes or poor formation.

III. Performance and Reliability Risks

Reduced Joint Quality:

Mixed joints exhibit diminished mechanical strength, compromised impact resistance, and shortened fatigue life.

When lead-free low-temperature bismuth-containing solder paste (e.g., SnBi alloys) is mixed with leaded solder paste, the joint temperature further decreases, increasing brittleness and degrading soldering performance.

Corrosion Issues:

Lead in leaded solder paste may chemically react with other components in lead-free paste, generating corrosive substances that shorten joint lifespan.

IV. Process Control Challenges

Incompatible Reflow Temperature Profiles:

Lead-free paste requires higher soldering temperatures, while leaded paste requires lower temperatures. Mixed use necessitates frequent process parameter adjustments, increasing debugging complexity.

Poor Flux Compatibility:

Flux components in the two pastes may conflict, causing abnormal conductivity in residues and triggering leakage or short circuits between solder joints.

V. Environmental and Regulatory Constraints

Violation of RoHS Standards:

The EU RoHS Directive limits lead content in electronics to no more than 1000 ppm. Mixed use may exceed this threshold, resulting in export restrictions or substantial fines.

Corporate Reputation Risk:

Using non-compliant products may damage corporate image and undermine market competitiveness.
