A Brief Discussion on the Standard Viscosity Range for Lead-Free Solder Paste

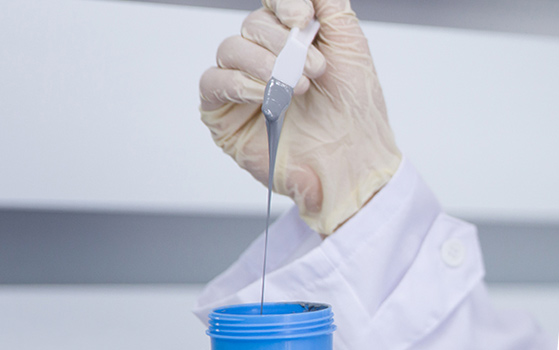

The standard viscosity range for lead-free solder paste is typically 80–250 Pa·s (or 80,000–250,000 cP), but specific values must be adjusted based on the printing process, equipment, and product requirements. The following is a detailed analysis:

I. Core Basis for Viscosity Standards

Industry-Standard Range

The viscosity of lead-free solder paste must strike a balance between printing fluidity and pattern stability. The industry-standard viscosity range is 80–250 Pa·s (or 80,000–250,000 cP), which covers the requirements of most SMT (Surface Mount Technology) processes. For example:

Low viscosity (80–120 Pa·s): Suitable for high-speed printing or micro-components (such as 0201 and 01005 packages), as well as high-lead solder paste for power devices, to reduce the risk of edge collapse and bridging.

Medium viscosity (120–180 Pa·s): A general-purpose formulation that balances printing accuracy and release performance, suitable for most standard components.

High viscosity (180–250 Pa·s): Used for wide-pitch components or thick-board printing, as well as SIP micro-bump applications, to prevent solder paste flow, ensure uniform pad coverage, and guarantee sufficient solder alloy volume.

Process Adaptability

Printing Speed: High-speed printing (e.g., >100 mm/s) requires low-viscosity solder paste to reduce resistance; Low-speed printing (e.g., <50 mm/s) can use high-viscosity solder paste to enhance stability.

Stencil thickness: Thick stencils (e.g., 0.15 mm or thicker) require high-viscosity solder paste to prevent sagging; thin stencils (e.g., 0.1 mm or thinner) require low-viscosity solder paste to ensure fillability.

Component Spacing: For fine pitch (e.g., 0.3 mm or less), low-viscosity solder paste is required to prevent bridging; for wide pitch (e.g., 1.0 mm or more), high-viscosity solder paste can be selected to enhance joint strength.

II. Viscosity Testing and Control Methods

Testing Equipment

Rotary viscometer (e.g., Malcom, Brookfield): Measures solder paste resistance by rotating a rotor, directly outputting viscosity values (units: Pa·s or cP).

Thixotropic Index (Ti): Reflects the rate of morphological change in solder paste under external force; an optimal value is typically 0.4–0.6. A Ti value that is too low may cause printing tailing, while a value that is too high may result in difficulty in solder paste deposition.

Viscosity Recovery Rate (R Value): Measures the solder paste’s ability to return to its initial state after the external force is removed. R=0 is the optimal condition; R>0 may cause solder balls or bridging, while R<0 may result in insufficient solder deposition.

Environmental Control

Temperature: Viscosity decreases as temperature rises (approximately 10%–20% decrease per 10°C increase). It is recommended to maintain the printing environment temperature between 22–28°C.

Humidity: High humidity (>60% RH) may cause the solder paste to absorb moisture, leading to solder splatter or soldering defects. It is recommended to maintain humidity between 30–60% RH.

Storage Conditions: Unopened solder paste must be refrigerated (0–10°C). Once opened, it must be used within 24 hours to prevent viscosity changes from affecting print quality.

III. Effects of Abnormal Viscosity and Solutions

Excessive Viscosity

Symptoms: Screen clogging, insufficient solder deposition, uneven pad coverage.

Causes: Improper storage temperature, prolonged exposure after opening the container, flux evaporation, oxidation of tin powder, solder paste separation, and thickening.

Solutions: Stir after warming to room temperature; add or replace with fresh solder paste.

Too Low Viscosity:

Symptoms: Edge collapse, bridging, solder balls, and insufficient joint strength.

Causes: Excessively high storage temperature, excessive flux ratio, or solder paste separation.

Solutions: Reduce printing speed, switch to high-viscosity solder paste, or adjust the stencil design.

IV. Practical Application Cases

Case 1: Printing of Micro-Components

A mobile phone motherboard uses 0201-package components with a pitch of only 0.3 mm. A low-viscosity solder paste with a viscosity of 90 Pa·s was selected, paired with a 0.08 mm thick stencil. The printing speed was set to 80 mm/s, successfully achieving high-quality soldering with no bridging or edge collapse.

Case 2: High-Power Module Soldering

An automotive electronic module required soldering of large-size IGBT chips with pad areas up to 10 mm². A high-viscosity solder paste with a viscosity of 180 Pa·s was selected, paired with a 0.2 mm thick stencil, and the printing speed was set to 30 mm/s, ensuring full solder joints with no voids.
